Bus Ro HS DL products Part number axis cnt. Interpo lation FB input Dimen.(mm) +5V power Cable ACB

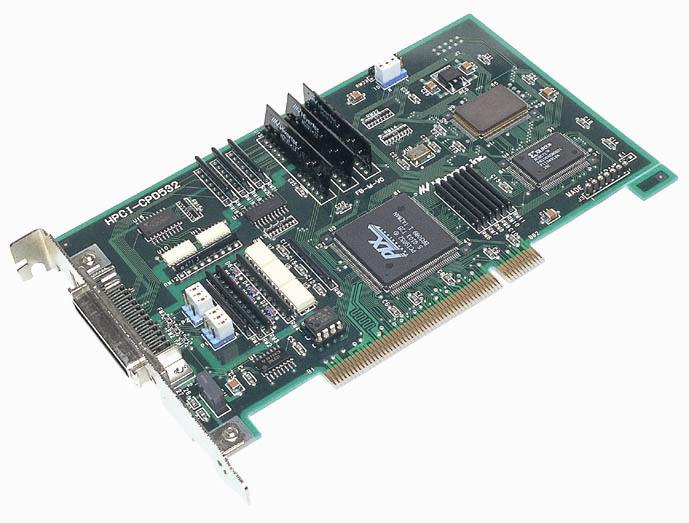

PCI ok pdf example1 HPCI-CPD532 2 yes yes 175 *107 0.7A HCL-015W 50-pin MDR ACB-MU0502/*

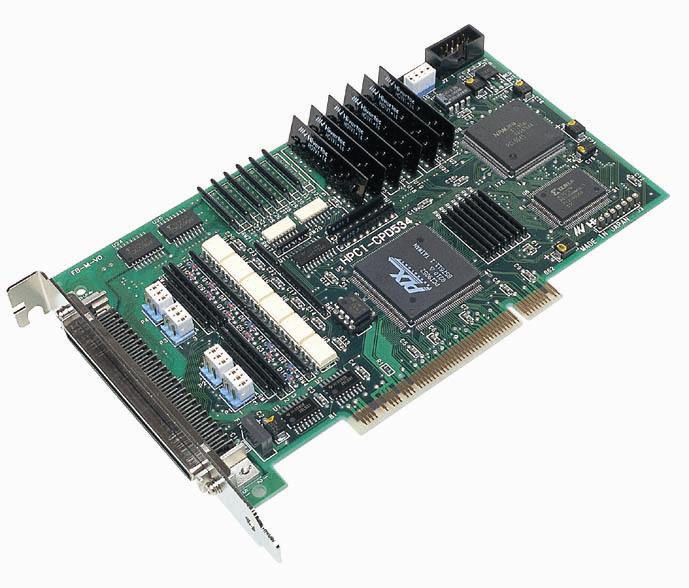

ok pdf example1 HPCI-CPD534 4 yes yes 175 *107 1.2A HCL-018W 100-pin MDR ACB-MU1004/*
ok pdf example1 HPCI-CPD574N 4 yes yes 175 *107 0.4A
3.3V
0.4A
HCL-018W 100-pin MDR ACB-MU1004/*

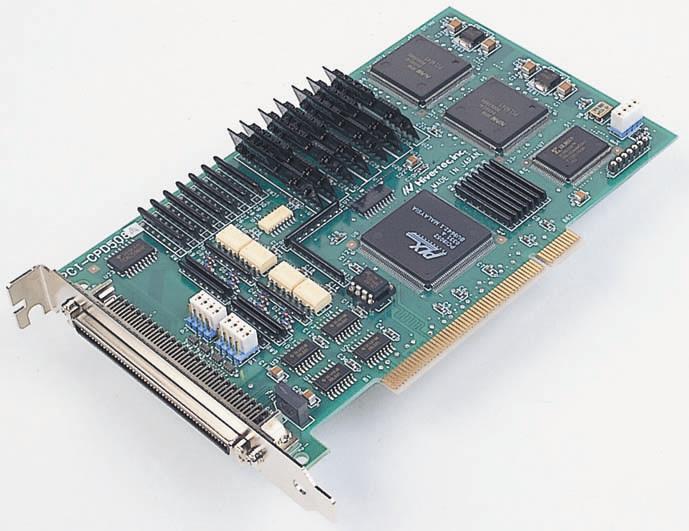

ok pdf example1 HPCI-CPD508 8 yes ? 175 *107 1.7A HCL-018W 100-pin MDR ACB-MU1008/*

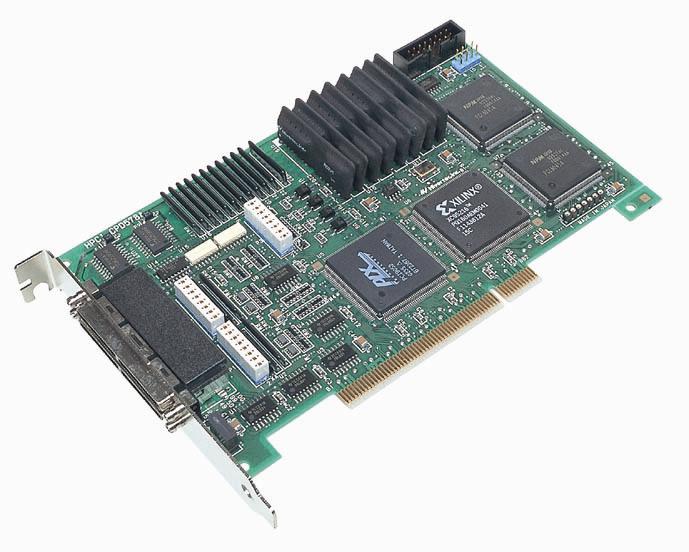

ok pdf example1 HPCI-CPD578 8 yes yes 175 *107 2.0A HCL-051W *2 100-pin *2 HDRA ACB-HU1004/* *2
ok pdf example1 HPCI-CPD578N 8 yes yes 175 *107 0.4A
3.3V
0.4A
HCL-051W *2 100-pin *2 HDRA ACB-HU1004/* *2

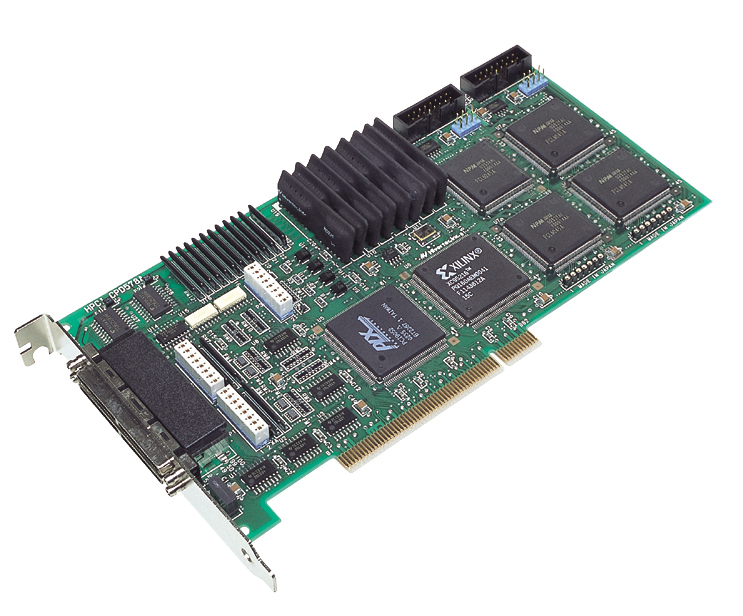

ok pdf example1 HPCI-CPD5212M 8 yes yes 211 *107 2.0A HCL-056W* 051*051Y ACB-CPD5206/*,MDR100/*

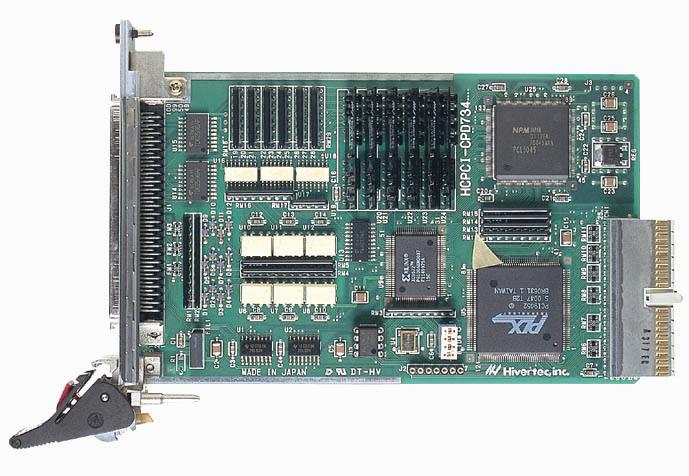

CPCI ok pdf example1 HCPCI-CPD734 4 yes yes 160*100 1.2A HCL-018W 100-pin MDR ACB-MU1004/*

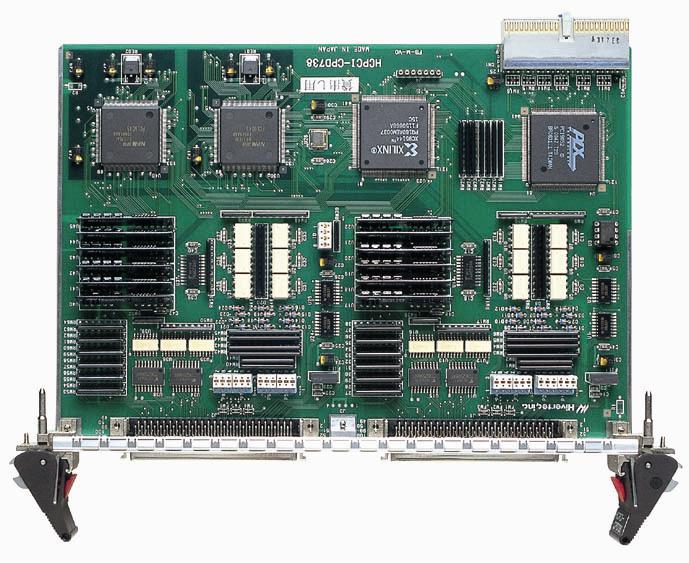

ok pdf example1 HCPCI-CPD738 8 yes yes 160 *233 2.0A HCL-018W *2 100-pin *2 MDR ACB-MU1004/* *2

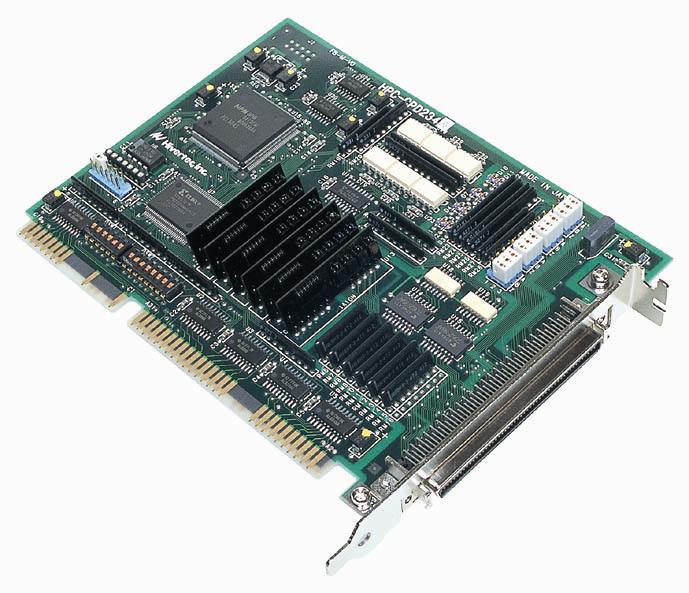

ISA ok pdf example1 HPC-CPD234 4 yes yes 162 *122 1.1A HCL-018W 100-pin MDR ACB-MU1004/*

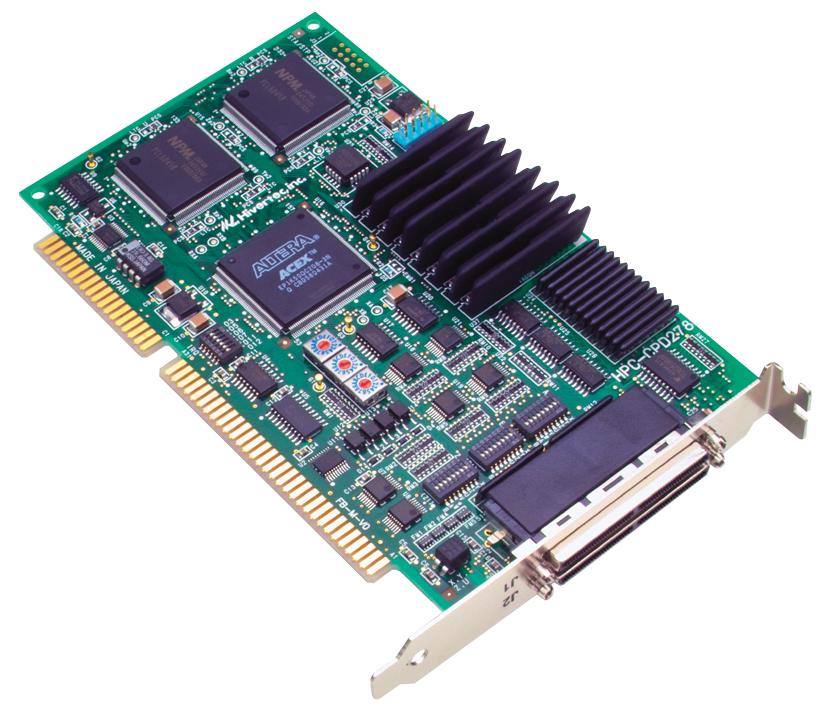

ok pdf example1 HPC-CPD278 8 yes yes 175 *107 2.0A HCL-051W *2 100-pin *2 HDRA ACB-HU1004/*, DX100 *2

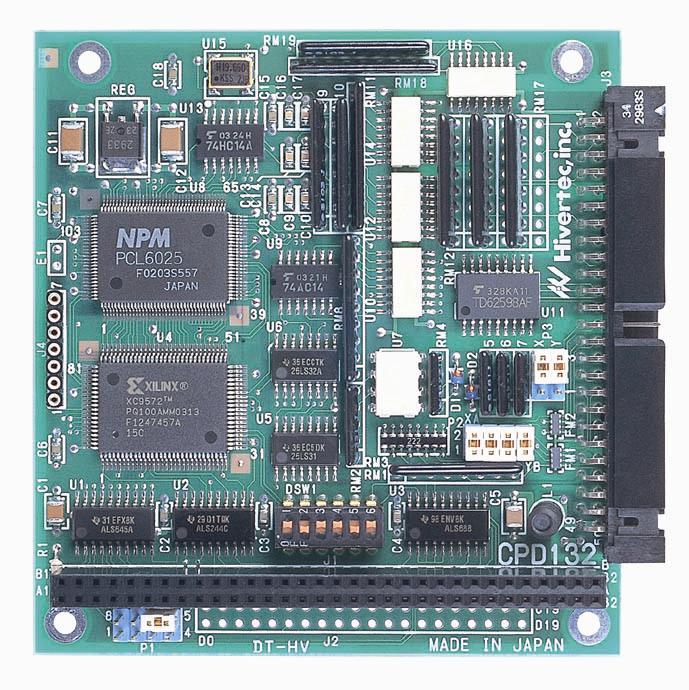

PC/104 ok pdf example1 HPC104-CPD132 2 yes yes 90.2 *95.9 0.6A 8-bit bus system
ok pdf example1
KRCB

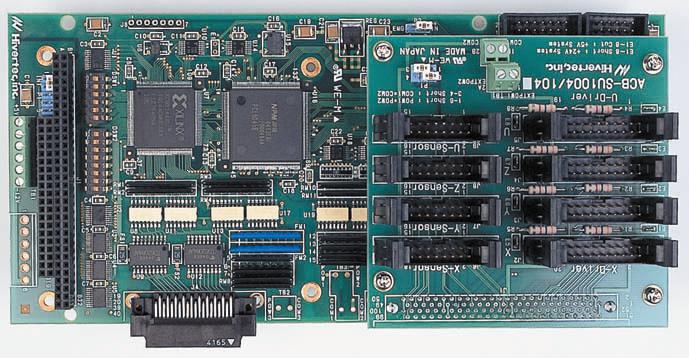

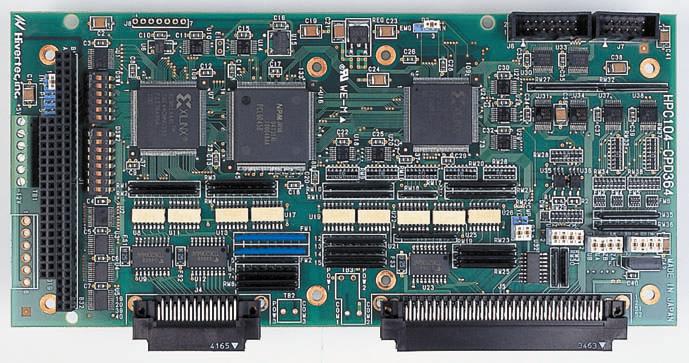

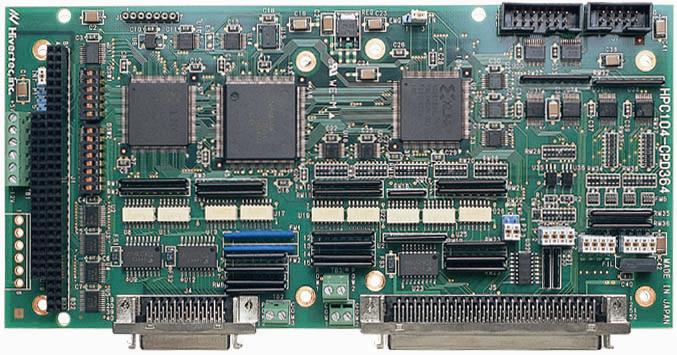

HP104D-CPD364 KR/CB/MR 4 yes yes 1422 *110 1.1A 8-bit bus & 16-bit bus system available DIO 16in/16out
USB ok pdf example1
MS(D)CBCB(D)

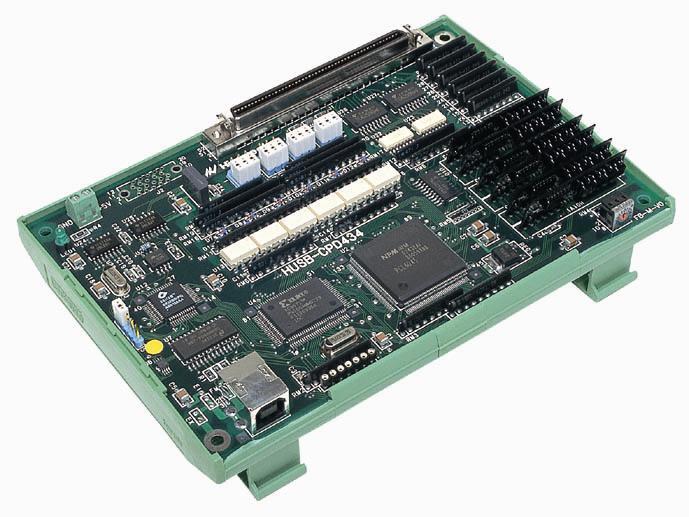

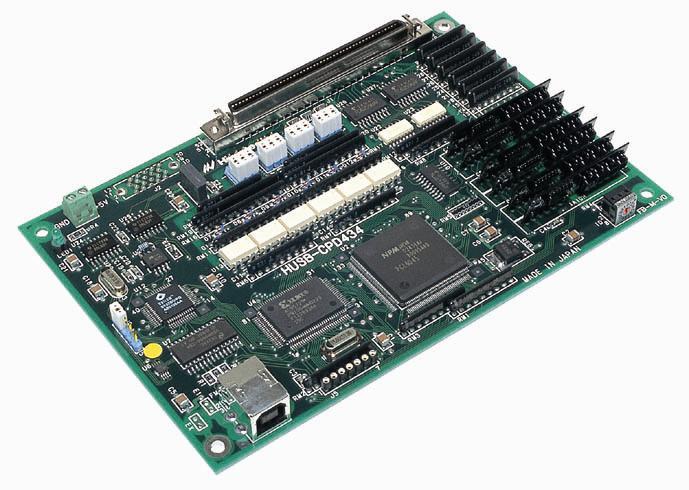

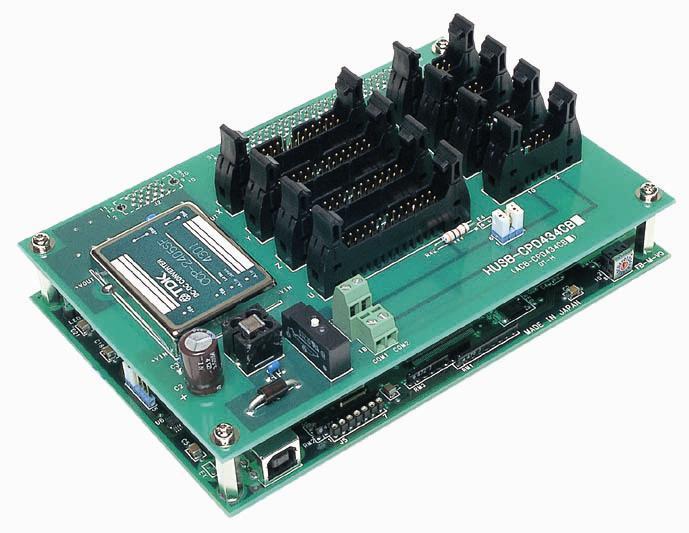

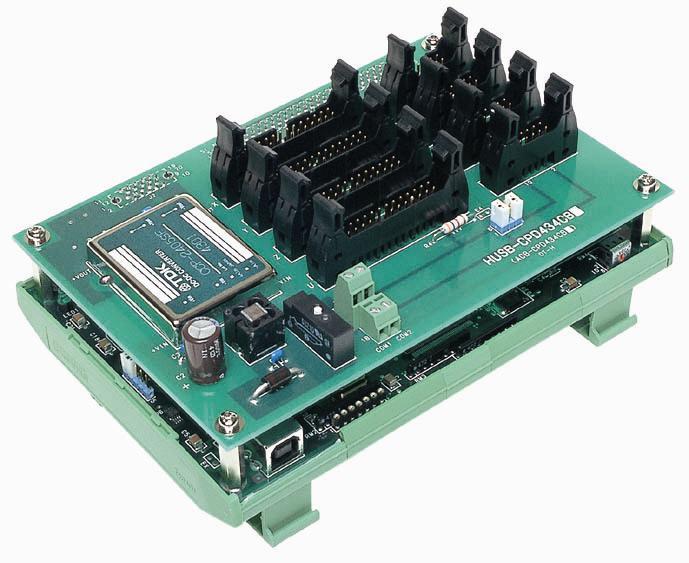

HUSB-CPD434 MS(D)/CB(D) 4 yes yes DIO 32in/32out with USB I/F is also available. HUSB-DIO464
